Year 2 individual coursework · Data Science for Applied AI

Comparing classical classifiers, carefully

An individual study comparing four classifier families on the Wisconsin breast-cancer dataset. The useful result is not a winner but the relationship between preprocessing, data boundaries and the kinds of error each model makes. A benchmark exercise, not a clinical tool.

Context
Individual coursework · Data Science for Applied AI, University of Bradford
My role
Sole author: analysis, preprocessing, modelling, evaluation and report
Dates
January 2025
Status
Completed academic study · notebook and report on GitHub

Stack

  • Python
  • pandas
  • NumPy
  • scikit-learn
  • matplotlib
  • seaborn
Notebook and report on GitHub

The short version

Each point is expanded, with diagrams, in the sections below.

01Problem and constraints
How do linear, margin-based, tree-based and neighbour-based models compare on a small tabular dataset, without mistaking noise for a winner?
02My responsibility
Individual work: every step from exploration to the report.
03The design
One fixed random split, scaling fitted on training rows only, four baselines, then errors compared class by class.
04What I implemented
Exploratory analysis, preprocessing, four baseline models, grid searches, confusion matrices and ROC analysis.
05The team’s part
None: individual coursework.
06What was delivered
A notebook and a written report, both now public on GitHub.
07What testing established
Baseline test accuracy ranged from 94.7% to 97.4% on 114 rows: differences of one to three cases.
08Learned, and unfinished
Keep preprocessing inside cross-validation, stratify, hold a test set back, and report the error that matters. A later review found the tuning experiments mixed two versions of the data.
On this page

The question

Each model family makes different assumptions about the same 30 measurements. I wanted to see how those assumptions played out on a small dataset, and how much of any difference was really just a few test cases.

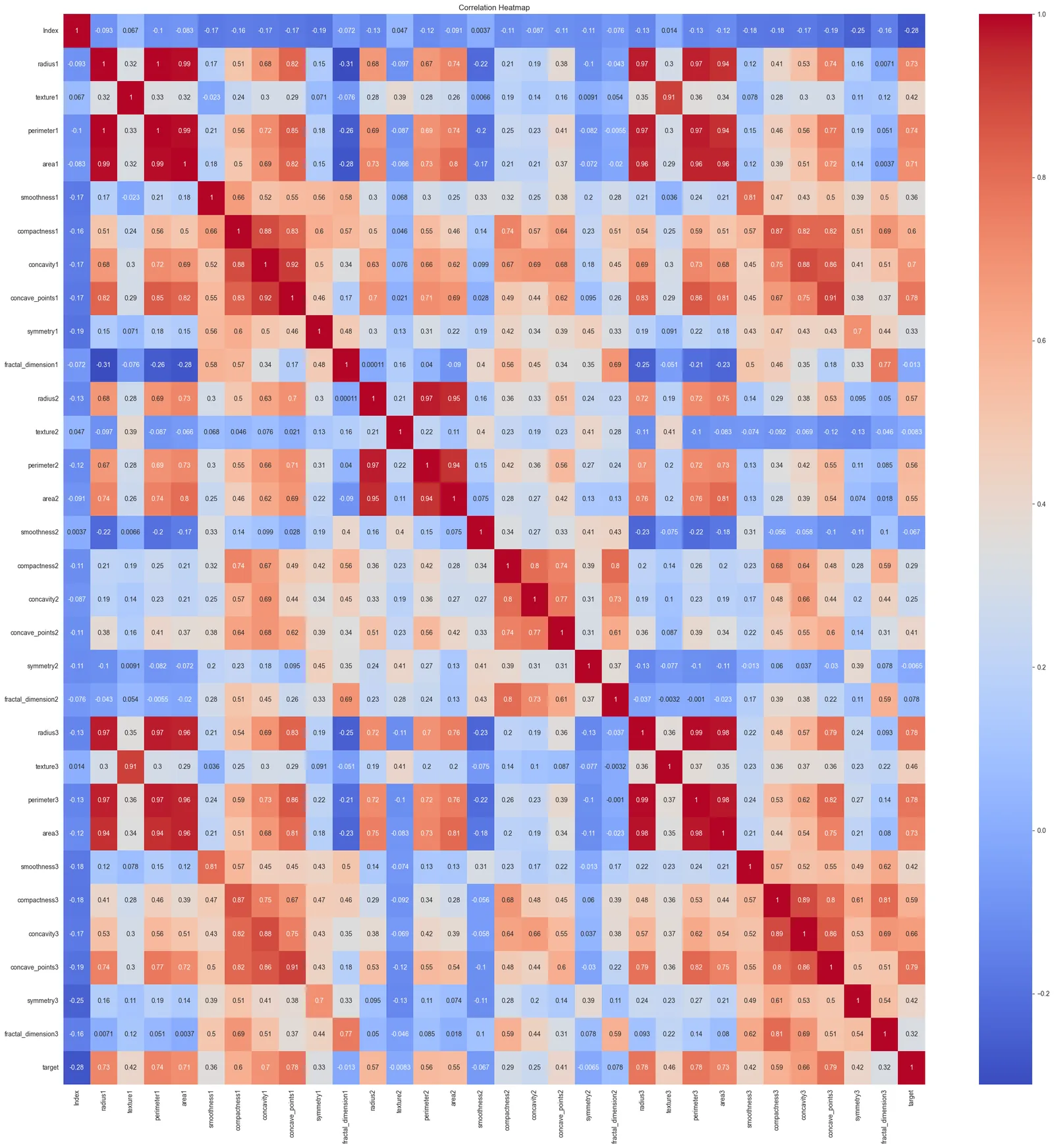

Correlation heatmap of the breast-cancer dataset's features. Blocks of strongly correlated features, such as radius, perimeter and area, stand out in dark red. The heatmap also includes the file's row-index column.
Notebook figureFeature correlations from the exploratory analysis: size-related measurements move together, which matters for linear and distance-based models.Open full size

The experiment

The baseline comparison lives in one notebook cell: load the data, split it once with a fixed seed, fit the scaler on the training rows only, then fit and score all four models. Everything else in the notebook, including outlier removal, projections and grid searches, ran as separate experiments and is kept apart from the baseline results.

Explanatory diagramDerived from breast_cancer_version4.ipynb (the comparison cell and the experiments around it)

The baseline experiment, and what sits outside it

The baseline experiment, and what sits outside itThe baseline comparison, and the separate experiments around it. Individual work throughout. Dashed red steps are the ones a later review found unreliable.BASELINE COMPARISON (ONE NOTEBOOK CELL)SEPARATE EXPERIMENTS: NOT PART OF THE BASELINELoad the dataset569 tumours, 30 numericfeatures, benign / malignantRandom 80/20 splitseed 42; not stratifiedTraining rows: 455Test rows: 11443 malignant, 71 benignFit StandardScaler on trainingrowsthen transform the test rowsFit four baselineslogistic regression, linear SVM,random forest, k-NNTrain vs test accuracy +confusion matricesExploratory analysisdistributions, correlations, classbalanceOutlier removal on a UCI copy569 → 486 rows, before any splitPCA and t-SNE viewsunscaled featuresGrid searches3–5 folds; scaler fitted before CV;mixed datasetsfittransform only
The baseline experiment, and what sits outside itThe baseline comparison, and the separate experiments around it. Individual work throughout. Dashed red steps are the ones a later review found unreliable.BASELINE COMPARISON (ONE NOTEBOOK CELL)SEPARATE EXPERIMENTSLoad the dataset569 tumours, 30 numericfeatures, benign /malignantRandom 80/20 splitseed 42; not stratifiedTraining rows: 455Test rows: 11443 malignant, 71 benignFit StandardScaler ontraining rowsthen transform the testrowsFit four baselineslogistic regression, linearSVM, random forest, k-NNTrain vs test accuracy+ confusion matricesExploratory analysisdistributions, correlations,class balanceOutlier removal on aUCI copy569 → 486 rows, beforeany splitPCA and t-SNE viewsunscaled featuresGrid searches3–5 folds; scaler fittedbefore CV; mixed datasetsfit
  • Implemented
  • Stored data
  • Incomplete, or a gap found in testing
The baseline comparison, and the separate experiments around it. Individual work throughout. Dashed red steps are the ones a later review found unreliable.

The baseline experiment, and what sits outside it

100%
The baseline experiment, and what sits outside itBASELINE COMPARISON (ONE NOTEBOOK CELL)SEPARATE EXPERIMENTS: NOT PART OF THE BASELINELoad the dataset569 tumours, 30 numericfeatures, benign / malignantRandom 80/20 splitseed 42; not stratifiedTraining rows: 455Test rows: 11443 malignant, 71 benignFit StandardScaler on trainingrowsthen transform the test rowsFit four baselineslogistic regression, linear SVM,random forest, k-NNTrain vs test accuracy +confusion matricesExploratory analysisdistributions, correlations, classbalanceOutlier removal on a UCI copy569 → 486 rows, before any splitPCA and t-SNE viewsunscaled featuresGrid searches3–5 folds; scaler fitted before CV;mixed datasetsfittransform only
Text version of this diagram

Parts

  • Baseline comparison (one notebook cell)
    • Load the dataset — 569 tumours, 30 numeric features, benign / malignant
    • Random 80/20 split — seed 42; not stratified
    • Training rows: 455
    • Test rows: 114 — 43 malignant, 71 benign
    • Fit StandardScaler on training rows — then transform the test rows
    • Fit four baselines — logistic regression, linear SVM, random forest, k-NN
    • Train vs test accuracy + confusion matrices
  • Separate experiments: not part of the baseline
    • Exploratory analysis — distributions, correlations, class balance
    • Outlier removal on a UCI copy — 569 → 486 rows, before any split; incomplete or failed in testing
    • PCA and t-SNE views — unscaled features
    • Grid searches — 3–5 folds; scaler fitted before CV; mixed datasets; incomplete or failed in testing

Connections

  • Load the dataset → Random 80/20 split
  • Random 80/20 split → Training rows: 455
  • Random 80/20 split → Test rows: 114
  • Training rows: 455 → Fit StandardScaler on training rows: fit
  • Test rows: 114 → Fit StandardScaler on training rows: transform only
  • Fit StandardScaler on training rows → Fit four baselines
  • Fit four baselines → Train vs test accuracy + confusion matrices
  • Exploratory analysis → Outlier removal on a UCI copy
  • Outlier removal on a UCI copy → PCA and t-SNE views
  • Outlier removal on a UCI copy → Grid searches

What the results show

Chart · recorded resultsSaved outputs of the comparison cell in breast_cancer_version4.ipynb (January 2025), reproduced exactly

Four baselines on one fixed split: close scores, different errors

93%95%97%99%
Logistic regression97.37%
Random forest96.49%
Linear SVM95.61%
k-NN (k = 5)94.74%
Logistic regression
pred. Mpred. B
true M412
true B170
Random forest
pred. Mpred. B
true M403
true B170
Linear SVM
pred. Mpred. B
true M412
true B368
k-NN (k = 5)
pred. Mpred. B
true M403
true B368
  • training accuracy
  • test accuracy
Test set: 114 rows (43 malignant, 71 benign). One prediction moves test accuracy by about 0.9 points, so these differences do not establish a general winner.

The random forest fits every training row yet misses three malignant cases on the holdout; logistic regression and the linear SVM each miss two. Reading the errors, not just accuracy, is what makes the comparison useful.

  1. Compare model families, not just scores

    Holding the split fixed made the comparison about the models' assumptions. The random forest fitted every training row but was not the best on the holdout.

  2. Read the errors

    A missed malignant case and a false alarm have very different costs. Confusion matrices showed which models made which mistake.

What I would tighten now

  • Put scaling inside a scikit-learn Pipeline so each cross-validation fold fits its own transform; some searches scaled first.
  • Keep one dataset: some tuning ran on an outlier-filtered copy (486 rows), so the tuned and baseline results are not comparable.
  • Stratify the split and keep an untouched final test set instead of reusing the same 114 rows.
  • Report malignant recall directly: the notebook's precision and recall treated benign as the positive class.
